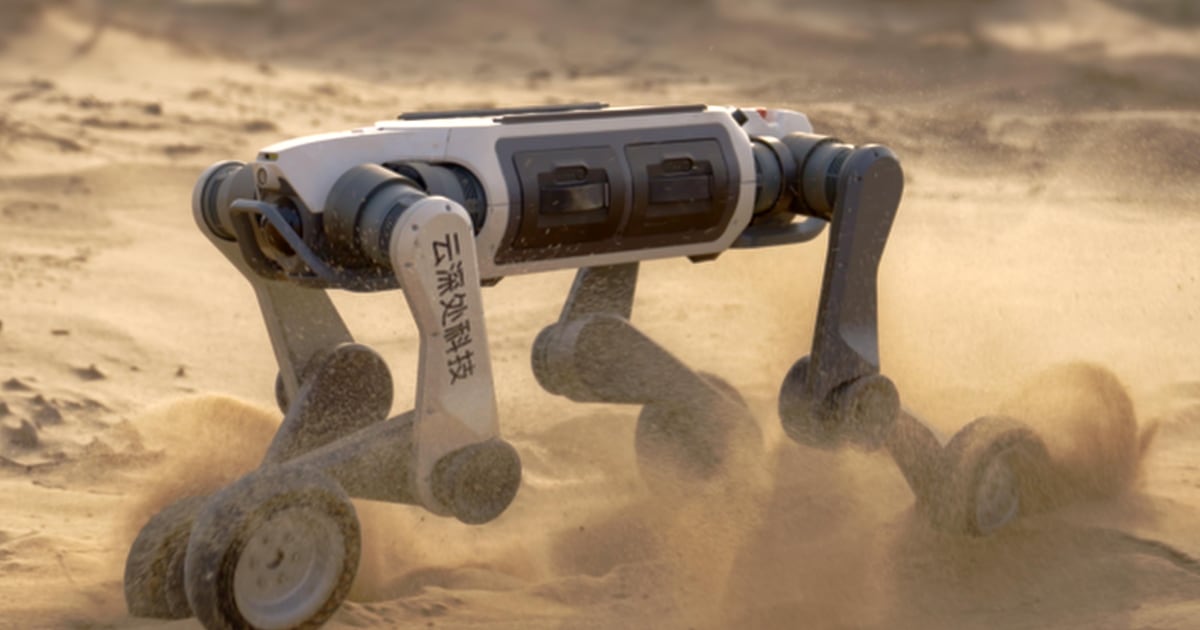

Deep Robotics Lynx M20: a robotic dog on wheels to transport rescuers' cargo (video)
Lynx M20 is another robot dog for transporting goods, but it has one big difference - instead of rubber caps on its limbs, it has... wheels. That is, it not only moves its legs, but can help itself move with the help of wheels. The developer of the robot, the Chinese company Deep Robotics, decided that this solution makes sense in difficult terrain - where there are no roads. The Lynx M20 weighs 33 kg, can carry up to 15 kg of cargo, and can operate for up to 3 hours without recharging (or 2.5 hours with a full load). Its operating time can be extended by hot-swapping batteries.
This robot is equipped with two 96-line LiDAR sensors with a 360°×90° field of view, enabling it to build 3D maps and avoid obstacles in real time.
Two wide-angle cameras and two-way illumination provide it with "vision" even in the dark.
Thanks to its IP66-rated protection, Lynx M20 is resistant to dust, rain, and temperatures from -20°C to +55°C.
Lynx M20 specifications
- Dimensions: 820×430×570 mm
- Weight: 33 kg
- Maximum load capacity: 15 kg (total - up to 50 kg)
- Speed: up to 5 m/s (18 km/h)
- Overcoming obstacles: stairs up to 25 cm, individual obstacles up to 80 cm, slopes up to 45°
- Processors: 2× octa-core 64-bit with 16 GB of RAM and 128 GB of storage each
- Protection: IP66
- Temperature range: -20°C to +55°C
Where it is used
Lynx M20 is designed to work in extreme conditions: from power grid inspection to search and rescue operations in disaster zones. Its autonomous navigation, ability to work in difficult conditions and adaptability make it an indispensable tool in situations where human presence is undesirable or dangerous.
Price point.
The basic version of Lynx costs around $18,000. For additional features, such as autonomous charging or advanced navigation capabilities, you will have to pay extra.
Source: Deep Robotics
